Colour · Off-line
ColorChecker Dip
Off-line colour sensor for liquids — works like a pH probe but provides objective colour values (L*, a*, b*, strength). Dip the probe into a dyebath of at least 40 ml and get results within seconds. Integrated pass/fail evaluation enables Right-First-Time dyeing by verifying dye exhaustion before drain. Eliminates unnecessary fabric sampling.
- Dye concentration: 0.01 – 5 g/l
- Temperature: 4 – 100 °C
- Outputs: L*, a*, b*, colour strength
- Industrial touchscreen PC (Windows 10 IoT)
- Ticket printer & optional cloud storage
Colour · On-line

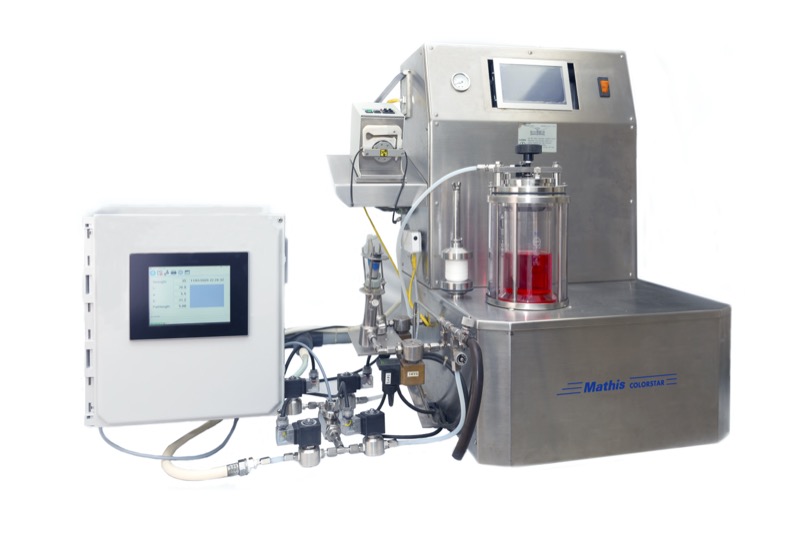

ColorChecker E
On-line colour sensor for dye and wash baths in lab and production machines. Analyse dye exhaustion and its sensitivity to temperature, salt and pH. Evaluate dye compatibility of multi-dye recipes and optimise wash-off. Achieve savings in processing time, water and energy of up to 30%.
- Dye concentration: 0.01 – 5 g/l
- Temperature: 4 – 100 °C
- Outputs: L, a, b, colour strength
- Automated 24/7 measurements
- Optional process parameter recording
Colour · Continuous

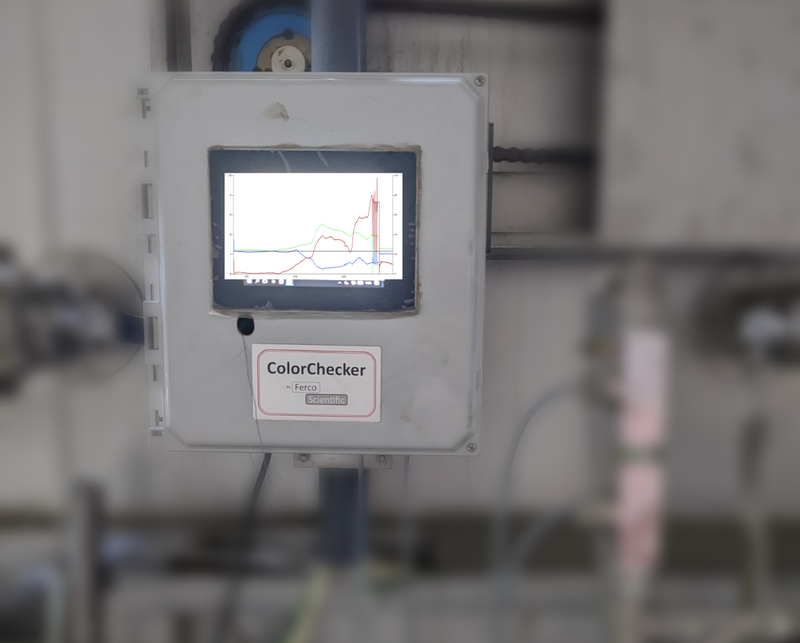

ColorChecker CWR
On-line colour sensor for continuous washing ranges. Installed in the circulation line of a wash box, it monitors colour values 24/7. Fine-tune water flow rates based on objective data and achieve water and energy savings of 15 – 30%.
- Dye concentration: 0.01 – 5 g/l
- Temperature: 4 – 100 °C
- Outputs: L, a, b, colour strength
- Automated 24/7 measurements
- Simple installation, retrofitting possible
Process
ProcessChecker
Intelligent software-based system for verifying salt concentration, pH and liquor ratio in exhaust dyeing of cotton, viscose and linen. Pass/fail assessments at four crucial process steps with automatic correction calculation. Prevents costly alkali dosing errors. The perfect tool for blind dyeing.
- pH range: −2 to 20
- Conductivity: 0 – 2,000 mS/cm
- Temperature: 4 – 100 °C
- Supports common salt, Glauber's salt & recycled salt
- Runs on any PC/tablet (Windows 10/11)
